MaltaCTF 2025 CTF Writeup

Sprivect

The goal of this challenge is to reverse engineer an obfuscated **Khronos SPIR-V binary**, reconstruct the logic used to generate an output image, and recover the original flag hidden within its data transformations.

Spirvect - CTF Challenge Writeup

Challenge Information

  • Name: Spirvect
  • Points: 100
  • Category: Reverse Engineering
  • Objective: The goal of this challenge is to reverse engineer an obfuscated Khronos SPIR-V binary, reconstruct the logic used to generate an output image, and recover the original flag hidden within its data transformations.

Solution

1. Understanding the Binary

  • We are given a compiled SPIR-V binary — an intermediate shader format used by Vulkan and OpenGL.

  • The first step is to disassemble the binary for analysis.

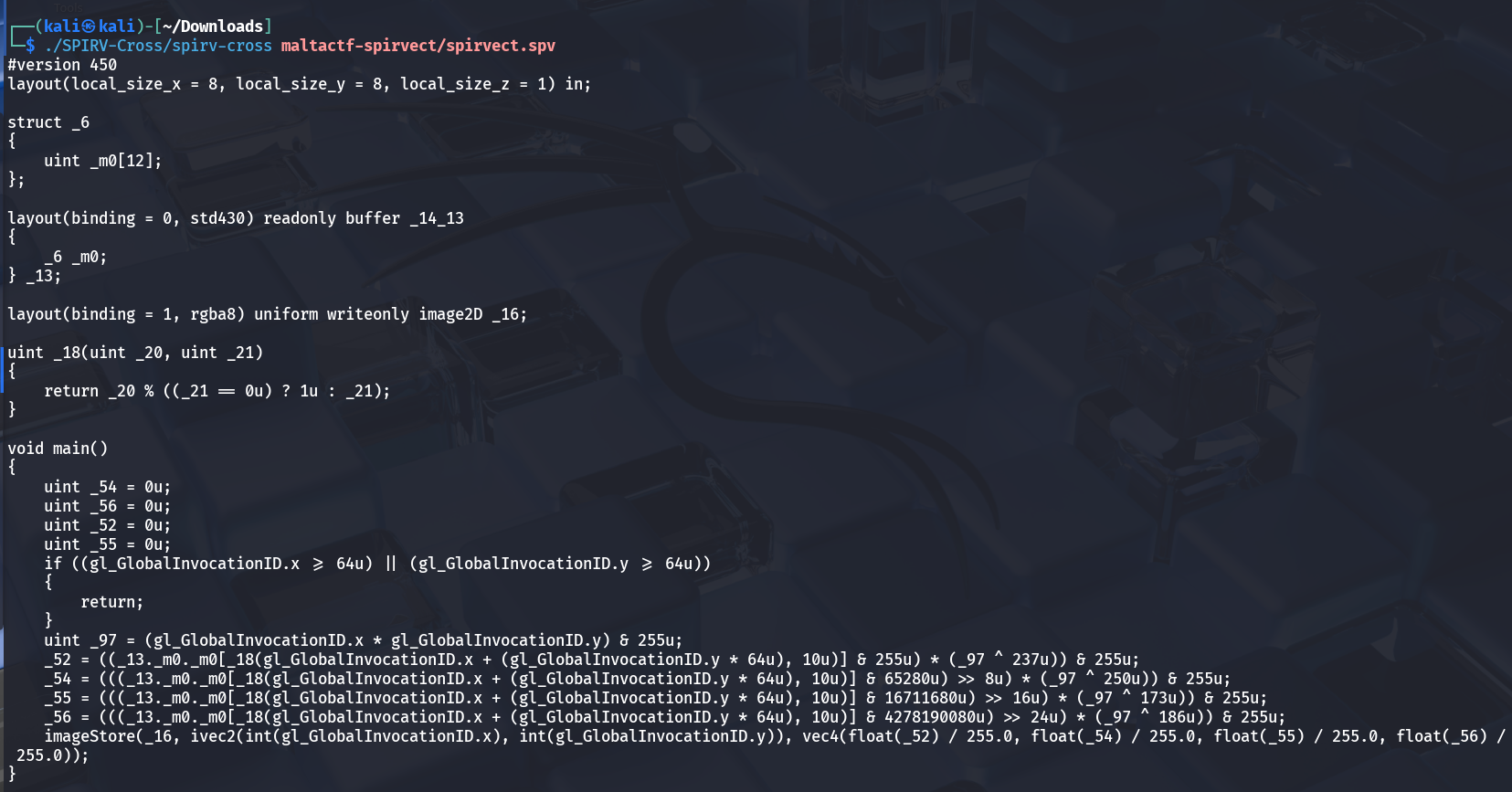

  • Using a tool like SPIRV-Cross, we can decompile the SPIR-V binary into readable shader source code:

    1

    spirv-cross input.spv

    Disassemble

2. Analyzing Shader Logic

  • After decompilation, the shader source reveals the core image-generation logic:

    • Operates on a 64×64 pixel grid.
    • For each pixel (x, y):
      • Computes a pseudo-random index into a 12-element uint array (modulo 10).
      • Extracts individual RGBA bytes from this uint.
      • Each byte is multiplied by an XOR-mixed version of x*y to introduce variation.
      • The final result is written to an image2D object (output.png).

3. Challenge Objective

  • Given the output image (output.png), our task is to reverse the transformations to recover the original flag.

4. Reversing the Transformation

  • The main challenge lies in the MOD operation, which makes exact inversion non-trivial.
  • Since modulo is not bijective, multiple inputs can map to the same output — a true inversion is not possible.

5. Brute Force Strategy

  • To work around this:

    • A brute-force approach is used to test all possible candidates for the mod result.
    • For each pixel:
      • Try possible pre-images and compute forward.
      • Compare against the actual pixel value in output.png.
    • Retain candidate values that best match the observed image data.
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

    import numpy as np
from PIL import Image
from collections import Counter

img = Image.open('output.png').convert('RGBA')
width, height = img.size
assert width == 64 and height == 64, "Expected image size 64x64"

# Shader constants
XOR_CONSTS = [237, 250, 173, 186]

def compute_97(x, y):
    return (x * y) & 0xFF

def palette_index(x, y):
    return (x + y * 64) % 10

def brute_force_reverse(mixer, out_val):
    candidates = []
    for p in range(256):
        if (p * mixer) & 0xFF == out_val:
            candidates.append(p)
    return candidates

palette_candidates = {i: [] for i in range(10)}

for y in range(height):
    for x in range(width):
        _97 = compute_97(x, y)
        mixers = [
            _97 ^ XOR_CONSTS[0],
            _97 ^ XOR_CONSTS[1],
            _97 ^ XOR_CONSTS[2],
            _97 ^ XOR_CONSTS[3],
        ]

        pixel = img.getpixel((x, y))
        index = palette_index(x, y)

        all_channel_candidates = []

        for c in range(4):
            m = mixers[c]
            out_val = pixel[c]
            chan_candidates = brute_force_reverse(m, out_val)
            all_channel_candidates.append(chan_candidates)

        for r in all_channel_candidates[0]:
            for g in all_channel_candidates[1]:
                for b in all_channel_candidates[2]:
                    for a in all_channel_candidates[3]:
                        palette_candidates[index].append((r, g, b, a))

final_palette = {}

for idx, candidates in palette_candidates.items():
    if not candidates:
        final_palette[idx] = (0, 0, 0, 0)
        continue

    counter = Counter(candidates)
    most_common_entry, count = counter.most_common(1)[0]
    final_palette[idx] = most_common_entry

print("Recovered palette:")
flag_str = ""

for i in range(10):
    r, g, b, a = final_palette[i]
    hex_value = (a << 24) | (b << 16) | (g << 8) | r
    hex_str = f"0x{hex_value:08X}"

    ascii_chars = [chr(c) if 32 <= c <= 126 else '.' for c in [r, g, b, a]]
    ascii_str = ''.join(ascii_chars)
    flag_str += ascii_str

    print(f"Index {i}: {hex_str}  '{ascii_str}'")

print("\nFull flag (ASCII):")
print(flag_str)

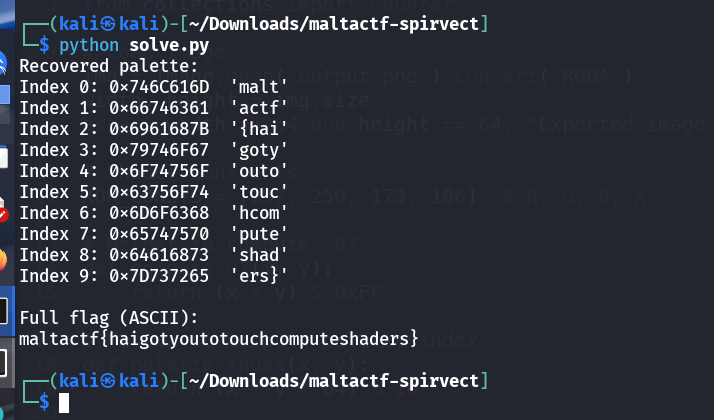

6. Flag Recovery

  • By applying this method across the entire image, we can extract candidate values.

  • As these are assembled, they form the original flag.

    Flag

Flag

The flag for this challenge is:
maltactf{haigotyoutotouchcomputeshaders}

Summary

The “Spirvect” challenge teaches players how to approach binary shader analysis, particularly when dealing with SPIR-V — an often overlooked binary format in CTFs. It also demonstrates practical challenges around reversing operations that involve modulo arithmetic and shows the utility of brute-force recovery when full inversion is mathematically infeasible.
